Standard FPU® Module #23

  • Standard FPU<sup>®</sup> Module #23 product image
  • Standard FPU<sup>®</sup> Module #23 product image
  • Standard FPU<sup>®</sup> Module #23 product image
  • Standard FPU<sup>®</sup> Module #23 product image

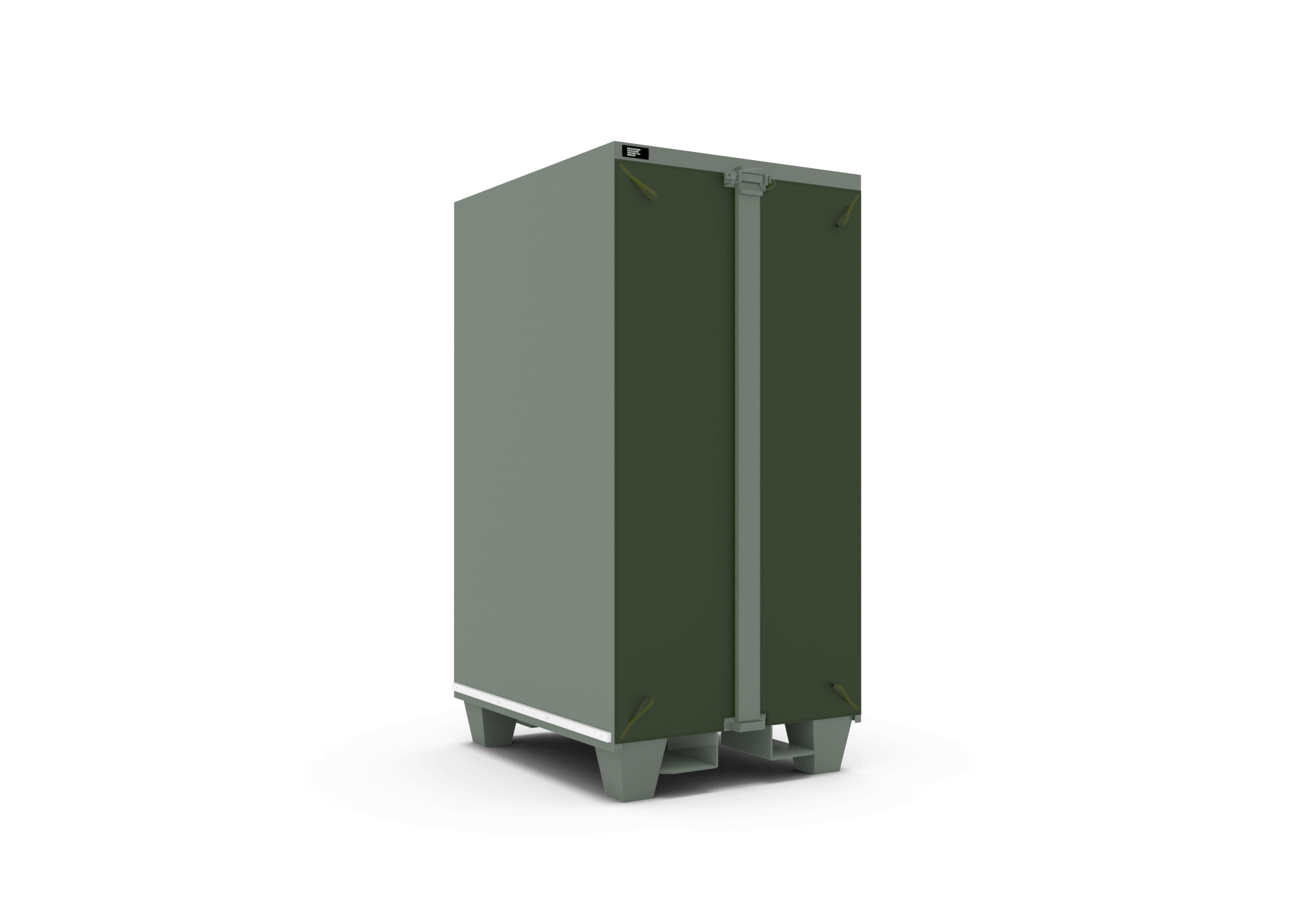

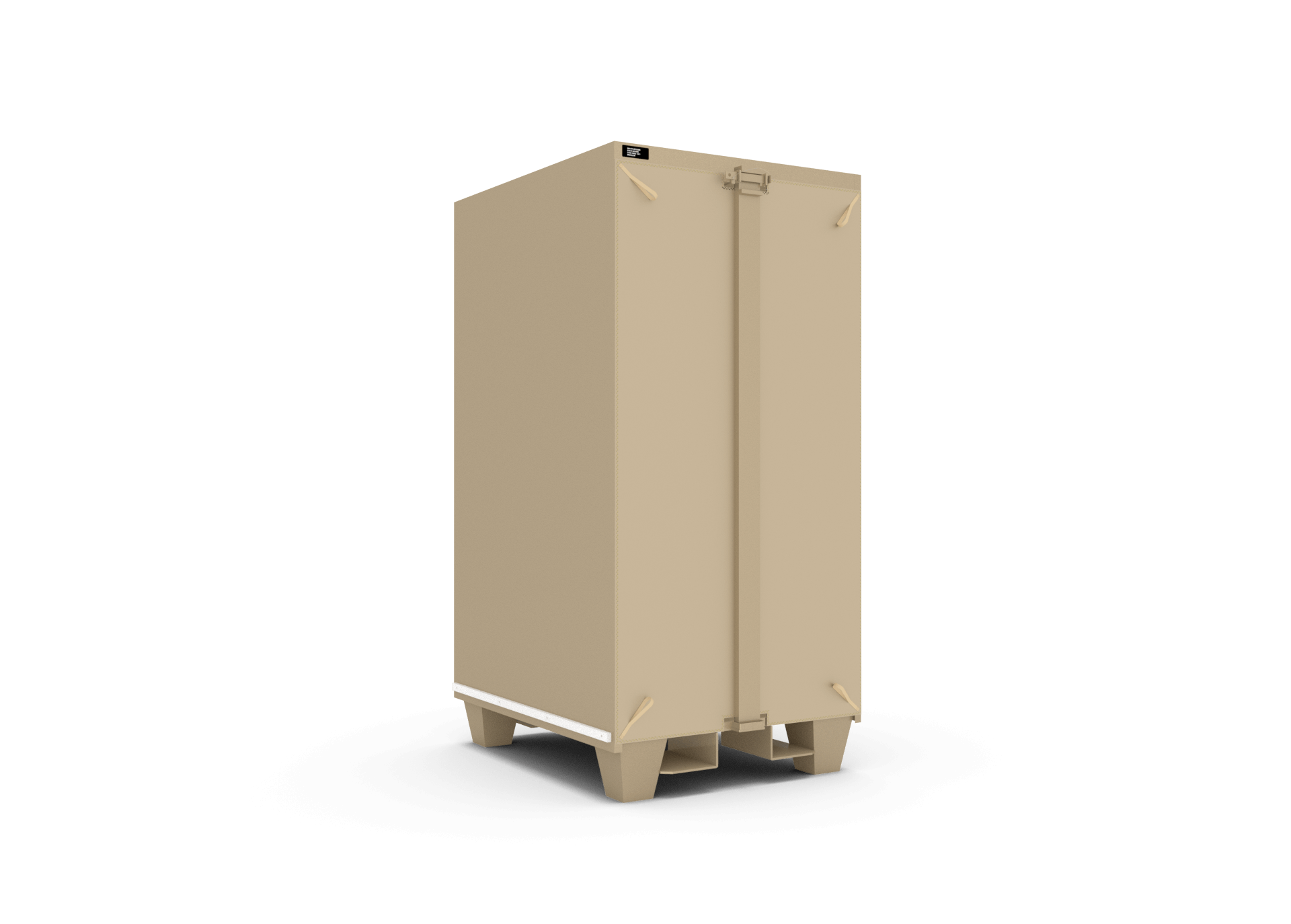

The Standard FPU® Module #23 is an all-steel expeditionary storage cabinet that is mission scalable, multi-class capable and always uploaded and ready to move. The Module #23 is designed to be interchangeable with compatible BOH containers and is approved for air transport aboard USAF C-130, C-5 and C-17 aircraft.

Color

NSN

8145-01-523-4011

Part Number

15700023-002
15700023-001
Request a Quote

Features

  • Single position FPU® Module compatible with the FPU-8, FPU-20-2, FPU-20-3 with Removable Cradle and BOH Adapter for TRICON I/II.

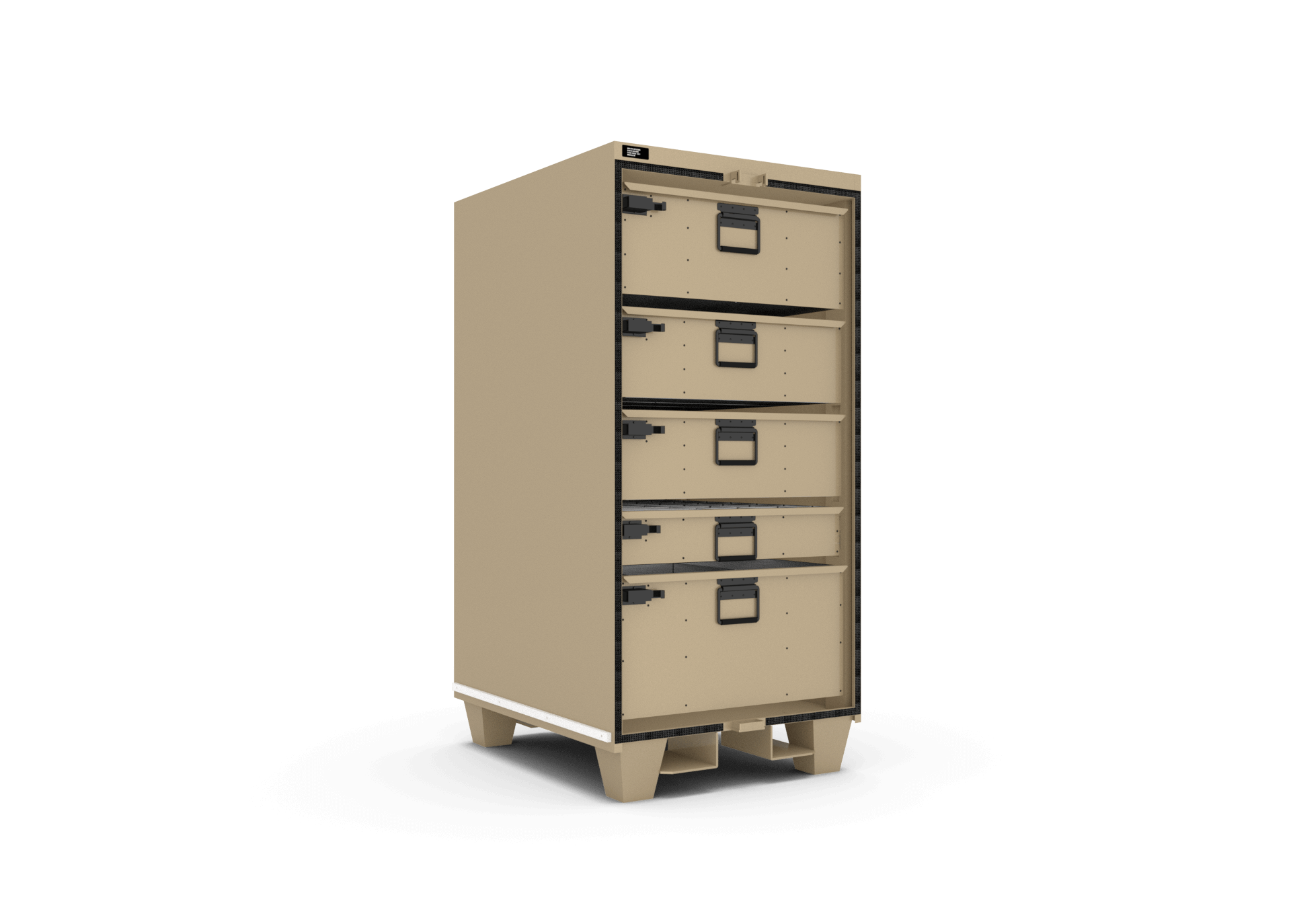

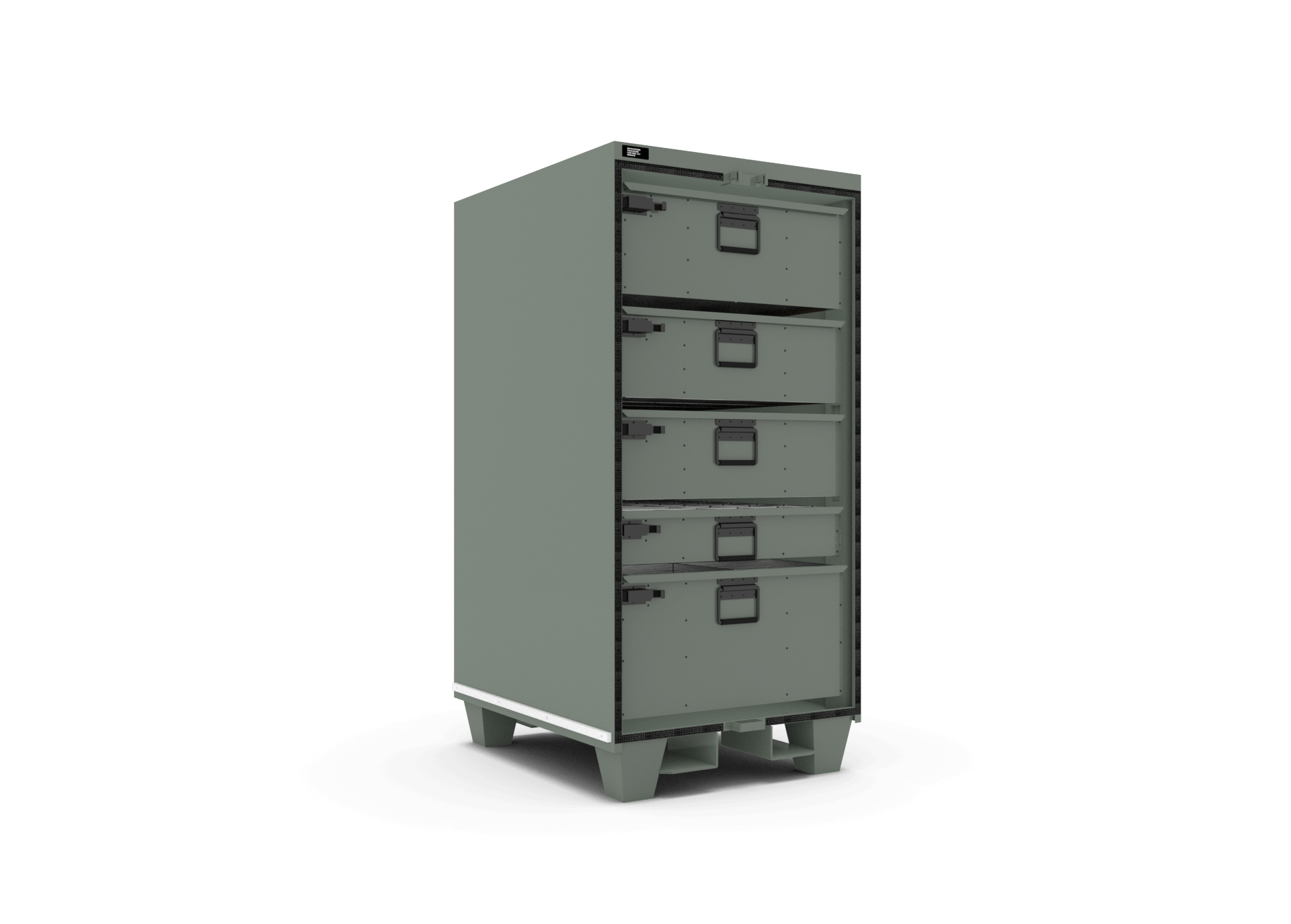

  • 5 Drawers (12″, 10″, 10″, 6″, 16″) with standard divider sets
  • 48 standard storage compartments
  • Expandable to 262 compartments with additional divider sets
  • Top mounted net for additional storage
  • High security 3-G locking bar that accommodates 5200 and 5300 series locks

Product Includes

  • 1 ea FPU® Module Cabinet with Security Bar, Dust Cover and Top Mounted Cargo Net
  • 1 ea 12″ Drawer with Dividers
  • 2 ea 10″ Drawer with Dividers
  • 1 ea 6″ Drawer with Dividers
  • 1 ea 16″ Drawer with Dividers

Support

Standard FPU® Module #23 User Manual

Dimensions

Height 74″
Length 35″
Width 43″

Weight

Tare 1,154 lbs.
Maximum Gross 2,554 lbs.
Net 1,400 lbs.
