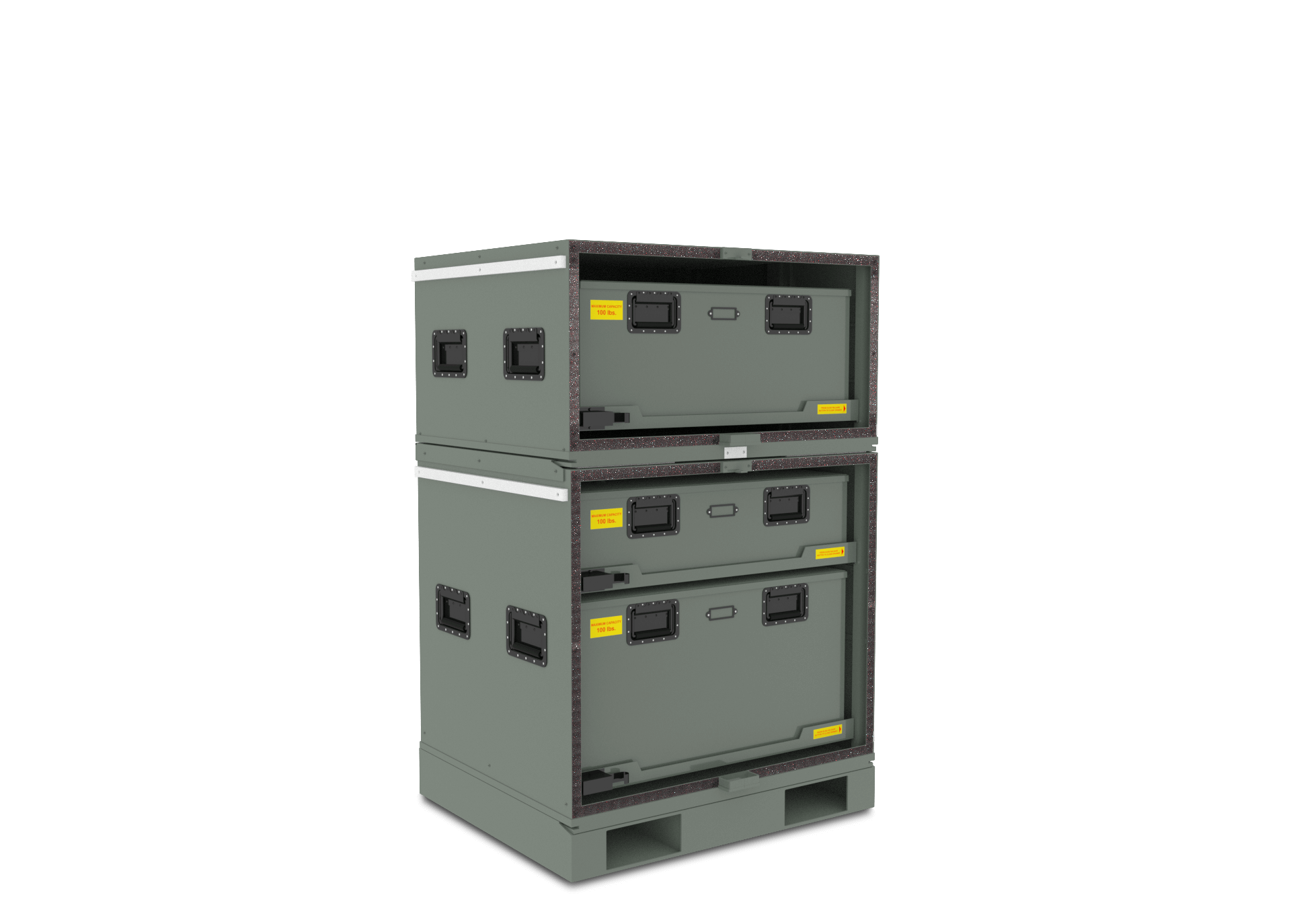

SCM 55″ Configuration #17

The 55” Small Cabinet Module (SCM) Configuration #17 is a steel and aluminum modular storage cabinet. This SCM configuration consists of 30” steel cabinet with three removable aluminum drawers, 19” steel cabinet with one removable aluminum drawer and a detachable 6” forklift base plate. Every component of the SCM is designed for optimum efficiency and safety in the field, the warehouse or in between.

Color

NSN

8145-01-611-3549
N/A

Part Number

18000017-002
18000017-001
Request a Quote

Features

  • 3 hand removable drawers (8”, 12″, 16″) with standard divider sets
  • Provides storage for Class I, II, III(P), IV, VII, VIII, IX and MTOE
  • 30 standard storage compartments
  • SCM can be completely disassembled and moved by hand

Product Includes

  • 1 ea 6″ Forklift Base Plate
  • 1 ea 30″ Cabinet with Dust Cover and Security Bar
  • 1 ea 18″ Cabinet with Dust Cover and Security Bar
  • 1 ea 8″ Aluminum Drawer with Dividers and Removable Lid
  • 1 ea 12″ Aluminum Drawer with Dividers and Removable Lid

Support

SCM 55″ Configuration #17 User Manual

Dimensions

Height 55″
Length 35″
Width 29″

Weight

Tare 494 lbs.
Maximum Gross 794 lbs.
Net 300 lbs.
