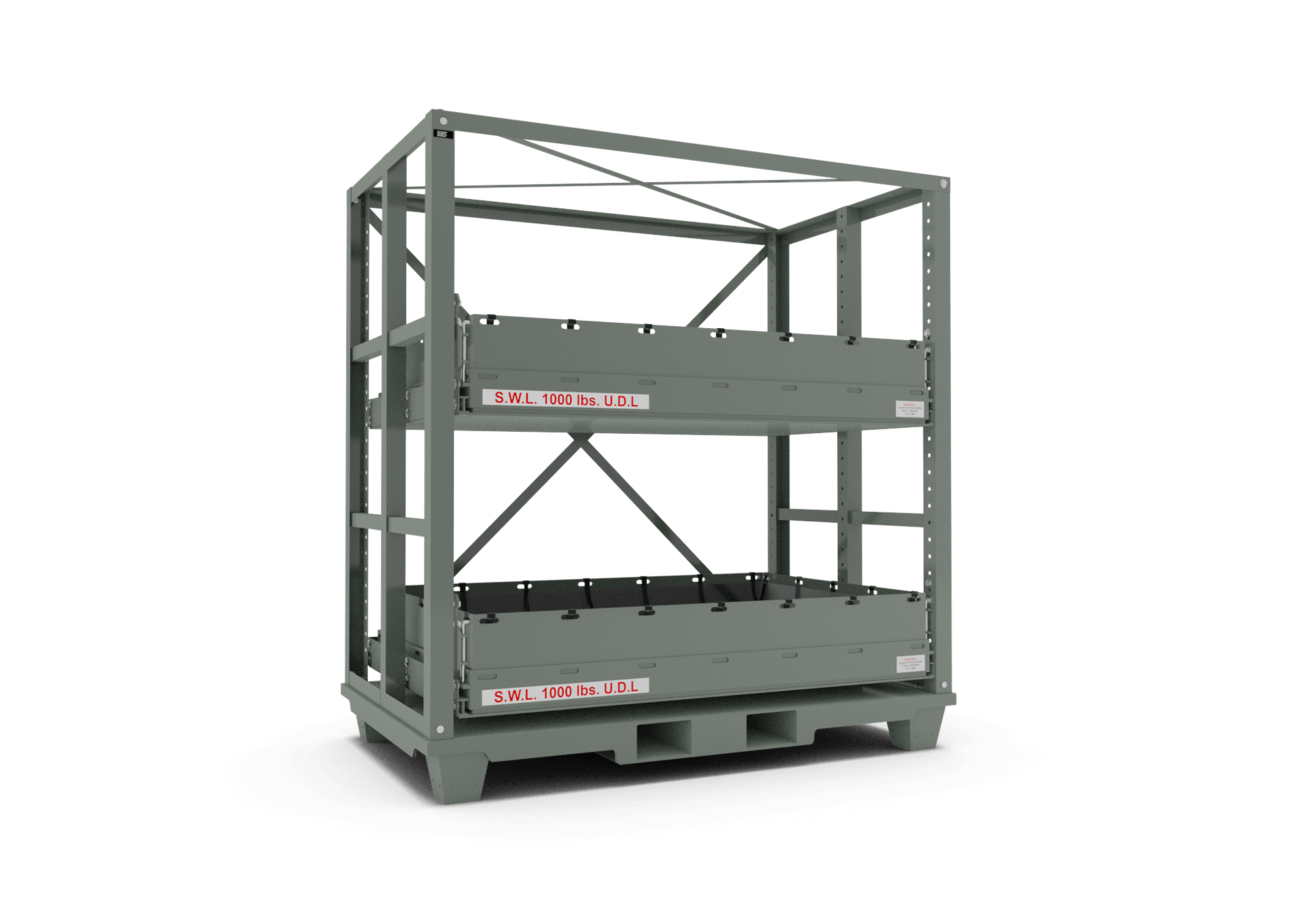

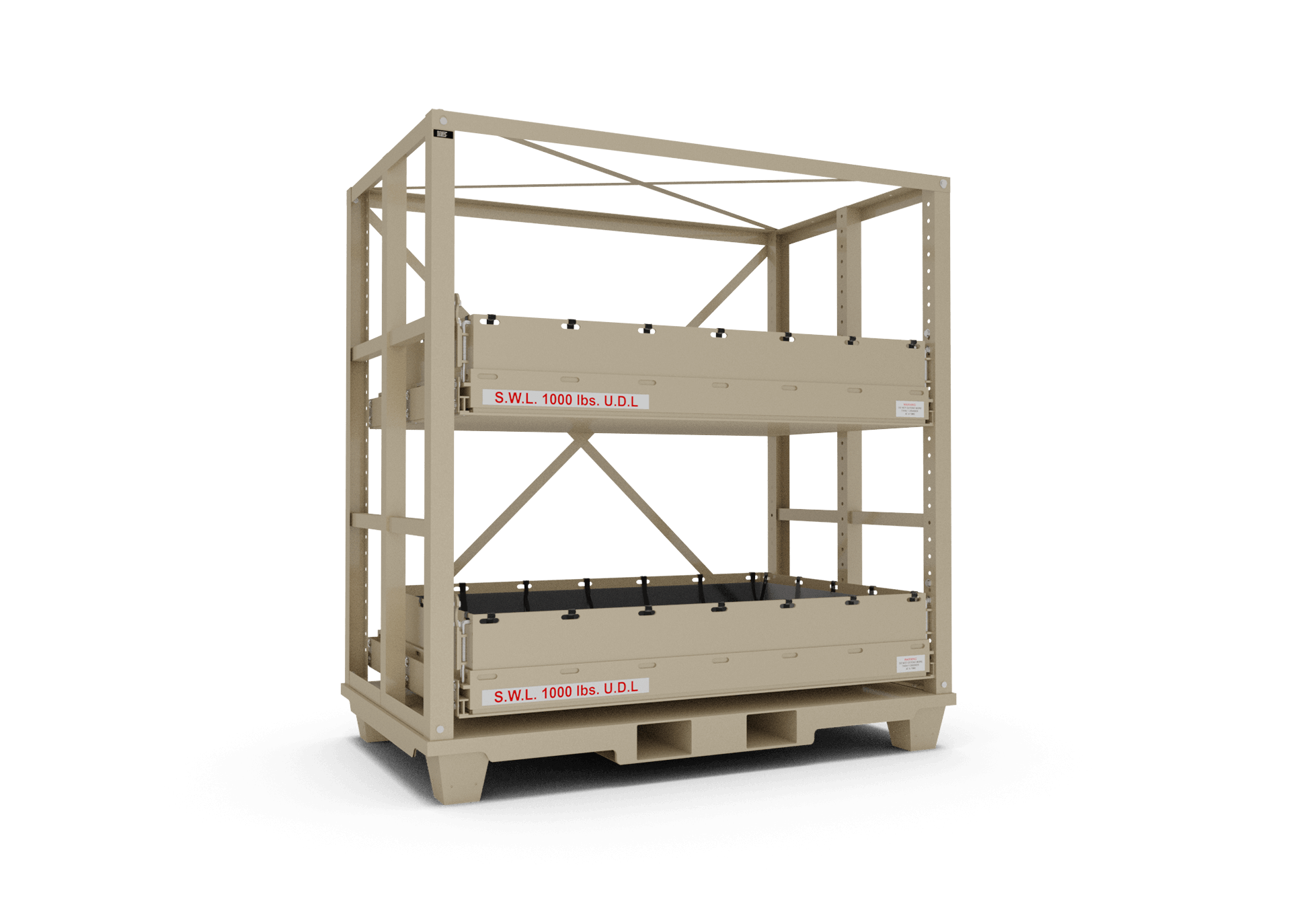

FPU® Bulk Module #4

The FPU® Bulk Module #4 is all steel expeditionary storage pallet system that is multi-class capable and always uploaded and ready to move. The Bulk Module provides organized storage for containerized bulk material and is designed to be interchangeable with compatible BOH containers.

Color

NSN

8145-01-588-3692

Part Number

15410204-002
15410204-001
Request a Quote

Features

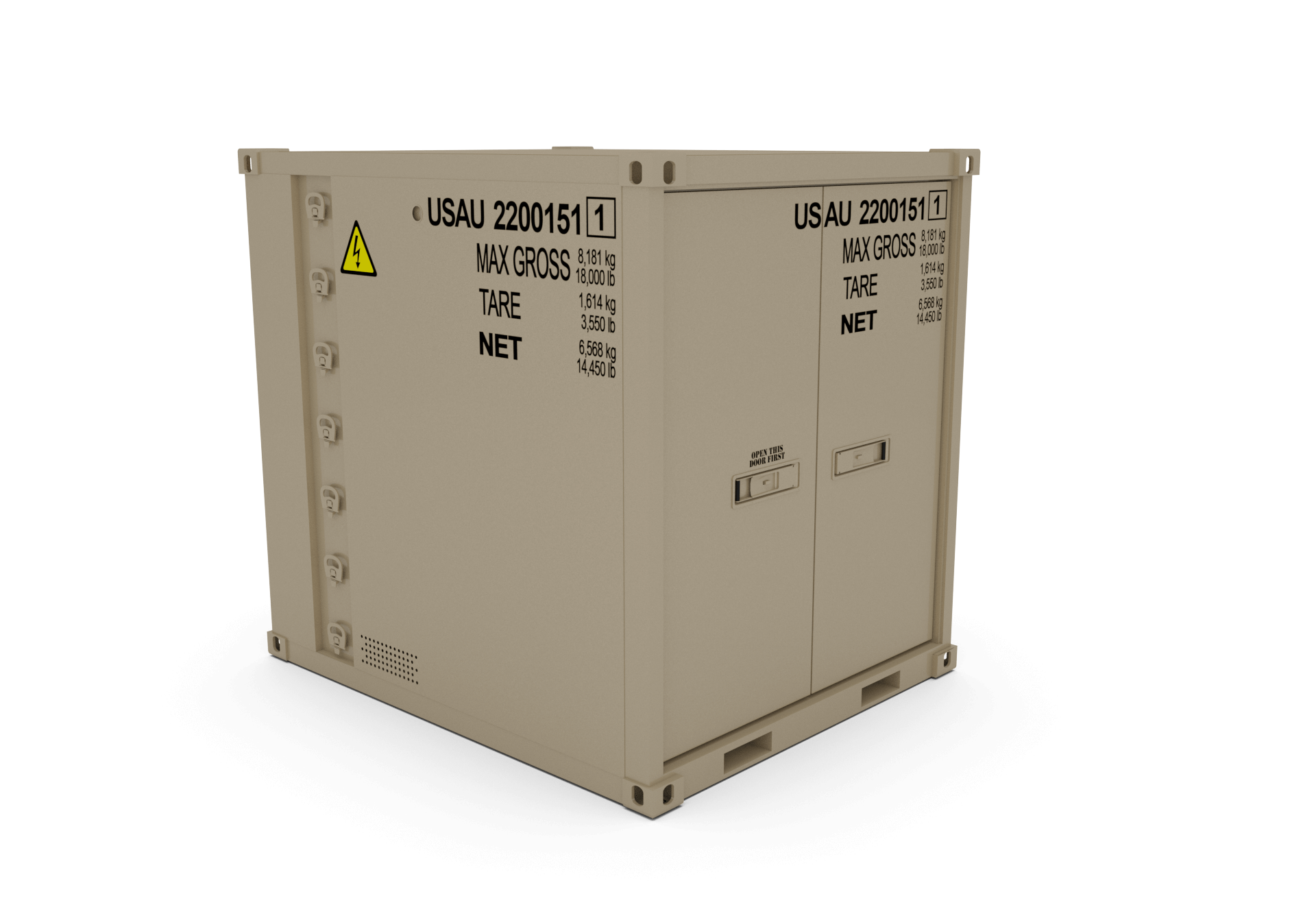

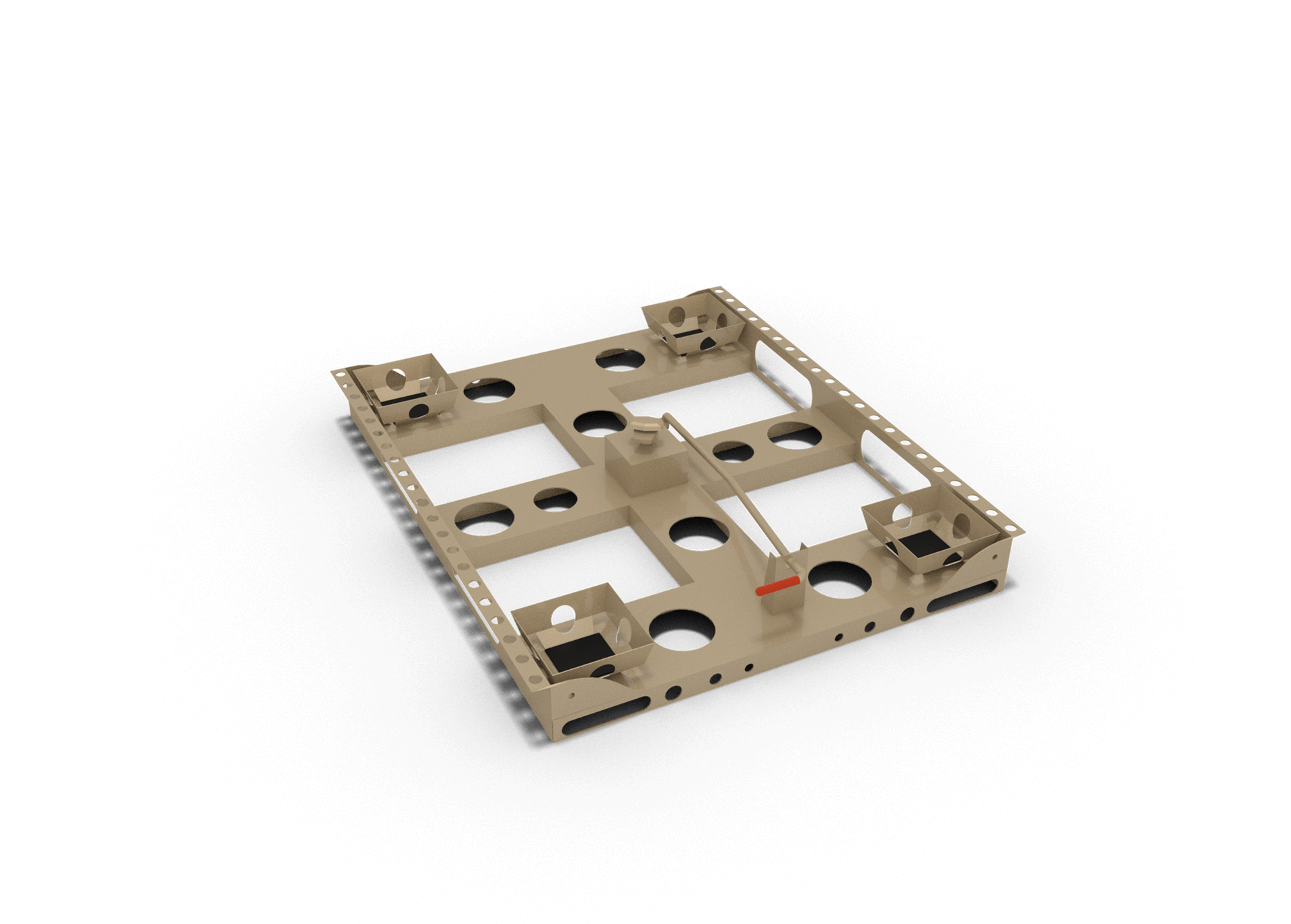

  • Double position FPU® Module compatible with the FPU-8, FPU-20-2, FPU-20-3 with Removable Cradle and BOH Adapter for TRICON I/II containers
  • 2 extendable battery shelf bins equipped with cargo nets
  • Bins are lined with petroleum/ acid resistant compound that provides secondary containment when storing hazardous materials and prevents metal to metal contact
  • Provides storage for Class I, II, III(P), IV, VII, VIII, IX and MTOE
  • Integrated with BOH’s quick connect / discount twist-locking system

Product Includes

  • 1 ea FPU® Bulk Module Frame
  • 2 ea Bulk Module Extendable Tray with Bin and Cargo Net

Support

FPU® Bulk Module #4 User Manual

Dimensions

Height 74″
Length 72″
Width 43″

Weight

Tare 998 lbs.
Maximum Gross 2,998 lbs.
Net 2,000 lbs.
