Expeditionary Bulk Storage System (EBSS®)
Expeditionary Bulk Storage System (EBSS®)

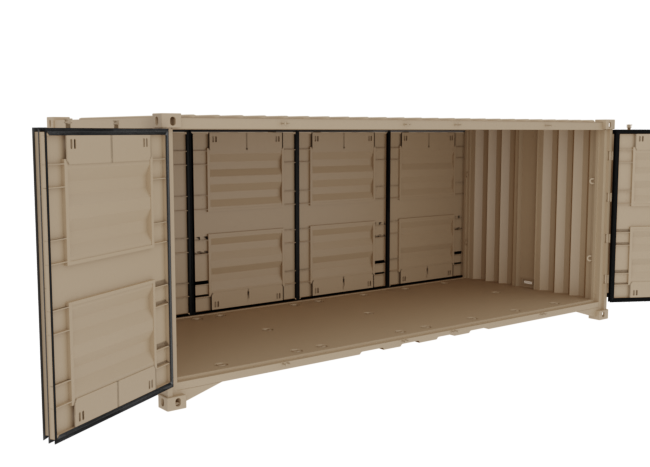

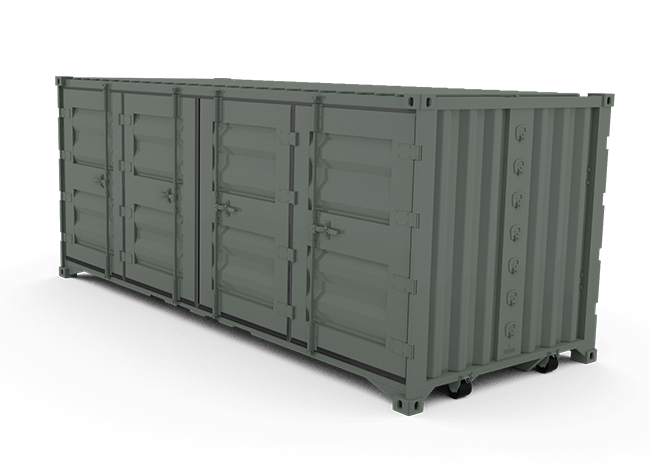

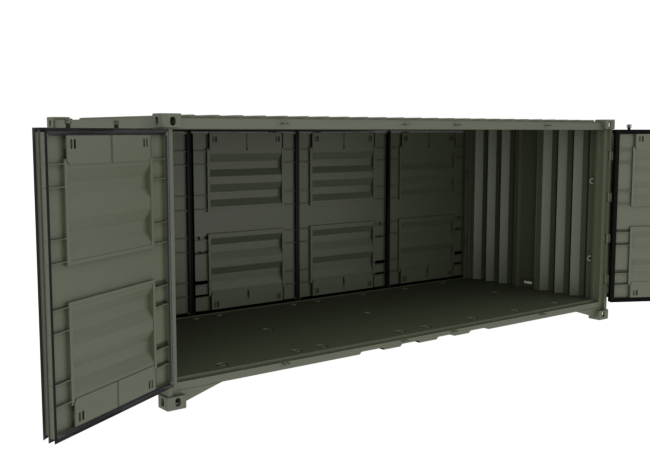

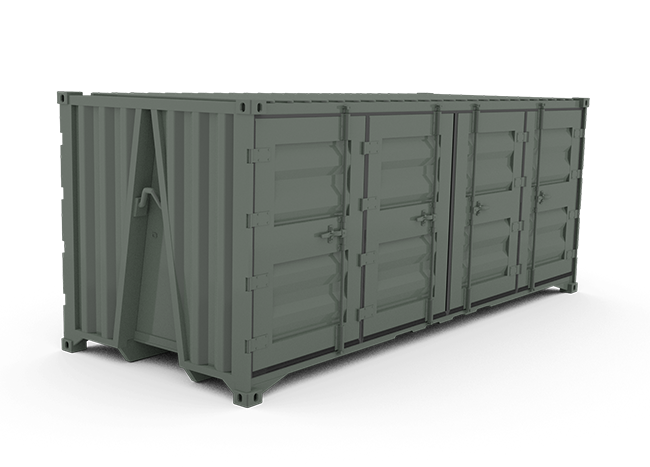

The EBSS® is a side-load container system which enables rapid mobilization of bulk material. The all-steel and ruggedized design can support operations in any environment. The EBSS® double doors provide full side openings without obstructions for easy loading of bulk material. The integrated bail-bar provides grab-and-go capability with the HEMTT-LHS, PLS and LVSR without the need for a flatrack.
Color
NSN
8145-01-695-4674 (Tan)
8145-01-695-4547 (Green)
Part Number
15002005-002 (Tan)
15002005-001 (Green)
Features
- Intergraded bail bar is compatible with the HEMTT-LHS, PLS, M-1076 PLS Trailer and LSVR
- 20 Tie-Down Rings Recessed into the Container Floor (8 each per side w/ 4 each in the center of the container)
- 2 Tie-Down Points Located on each Corner Post (Total of 8)
- Side load with bi-folding doors
- Recessed foldable ladder steps for roof access
- ISO-Certified and CSC Safety Approved
Product Includes
- 4 ea Door Restraining Straps
- 2 ea Roller Wheel Assemblies
Support
Expeditionary Bulk Storage System (EBSS®) User Manual
Dimensions
Height
96″
Length
240″
Width
96″
Weight
Tare
7,700 lbs.
Maximum Gross
37,000 lbs.
Net
29,400 lbs.
